Load Cell Highlights

Capacitive Load Cell Technology

Plug and Sense Simplicity
Digital Integrated Electronics
Standard USB output
Power supplied via USB port
No need for external power supply
Integrated power conditioning
Stored calibration

Rugged Construction

Compact design with low profile
Stainless steel construction
Mechanically robust
Weather resistant packaging available

Easy Attachments

Convenient mounting on top and bottom of sensor
Self balancing three point support on base

Digital Load Cell Capacities

digital load cell iLoad 10 lbs.
digital load cell iLoad 50 lb.
digital load cell iLoad 100 lb.
digital load cell iLoad 250 lb.
digital load cell iLoad 500 lb.

Download iLoad Digital eDrawing

Loadstar’s iLoad Digital USB series of load cells provides unprecedented integration of sensing and measurement electronics to provide Plug and Sense simplicity with Digital Perfection for load and force measurements.

	Precise Accuracies from 1% to 0.05% of full scale.			True USB No need for signal conditioning or data acquisition system.

	Rugged Stainless steel construction. Environmentally protected.			Easy Mounting Threaded mounting holes for easy attachment using standard fixtures.



Basic Configuration	with Inline Adapter (IX-300)	with #8-32 x 0.5 stud	with Tension Adapter (TX-300)
Click on thumbnail for alternative configuration

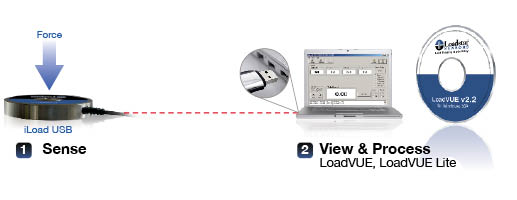

Here's How It Works

Simply connect the digital load cell to a PC via the USB port. The digital load cell appears on the PC as a virtual COM port. Using a standard terminal emulator send commands to the sensor to display loads on screen. They can either be one at a time or in continuous operation mode. Alternatively use an application (LoadVUE or LoadVUE Lite) to simplify load measurements on a PC.

If you are looking for load cells with analog output (0-5V DC), check out our iLoad Analog and iLoad Pro Analog load cells.

Load Cell: Dome

Load Cell - Standard

Part Number

Capacity

Accuracy
(FS)

Output

Cable(included)

List Price

LUD-010-100-S

10 lb

Digital USB

6' USB Type A

Please Call or fill out form

LUD-050-015-S

50 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-100-015-S

100 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-250-015-S

250 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-500-015-S

500 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

Load Cell - Precision

Part Number

Capacity

Accuracy
(FS)

Output

Cable(included)

List Price

LUD-050-005-S

50 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-100-005-S

100 lb

0.05%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-250-005-S

250 lb

0.05%

Digital USB

6' USB Type A

Please Call or fill out form

LUD-500-005-S

500 lb

0.05%

Digital USB

6' USB Type A

Please Call or fill out form

Load Cell: Male Stud

Load Cell - Standard

Part Number

Capacity

Accuracy
(FS)

Output

STD Termination

List Price

LUM-010-100-S

10 lb

Digital USB

6' USB Type A

Please Call or fill out form

LUM-050-015-S

50 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

LUM-100-015-S

100 lb

0.15%

Digital USB

6' USB Type A

Please Call or fill out form

Load Cell - Precision

Part Number

Capacity

Accuracy
(FS)

Output

STD Termination

List Price

LUM-050-005-S

50 lb

0.05%

Digital USB

6' USB Type A

Please Call or fill out form

LUM-100-005-S

100 lb

0.05%

Digital USB

6' USB Type A

Please Call or fill out form

Compatible Accesories

Interface Device	Universal Adapters

DS-3000U	TX-300 Adapter	IX-300 Adapter
Digital 4 Channel LED Display	3 in. Diameter - Male Mounting	3 in. Diameter - Female Mounting
Call for ordering information	Call for ordering information	Call for ordering information

USB Hubs

HX-400 Wired USB Hub	WX-400 Wireless USB Hub	WX-800 Wireless USB Hub	EX-500 USB/Ethernet Hub
	20' Range	100' Range
Call for ordering infromation	Call for ordering infromation	Call for ordering infromation	Call for ordering infromation
