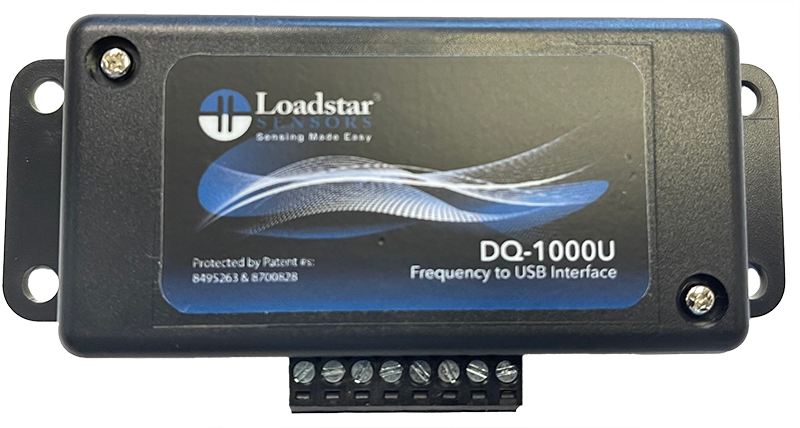

DQ-1000U (for iLoad Mini)

The DQ-1000U interface device provides a convenient way for an iLoad Mini Load Cell to be connected to a PC, Mac or Linux machine via USB or to a microcontroller via UART. It provides the iLoad Mini load cell with regulated power needed to power the load cell, reads the frequency signal from the load cell, applies calibration values to the signal and provides a digital output of the calibrated force, load or weight values.  The output signal is available via UART (Serial TTL) or via USB through the S2U Serial TTL (UART) to USB adapter.

The output data can be obtained at up to 150 Hz with the base DQ-1000U device and at up to 500 Hz using the DQ-1000UHS version of this device. Log and plot and display the data using our compatible LoadVUE Pro software on a Windows 8/10 PC or Tablet.

Data Output Rate: 150 Hz
Type: Capacitive
No. of Channels: 1
Output Signals Available Via: UART (Serial TTL) or USB through S2U Adapter
